7 Use Modes
Offers infinite viewing angle adjustment with support for seven usage modes. Presentation display, document editing, and mode switching all deliver an unprecedentedly smooth experience.

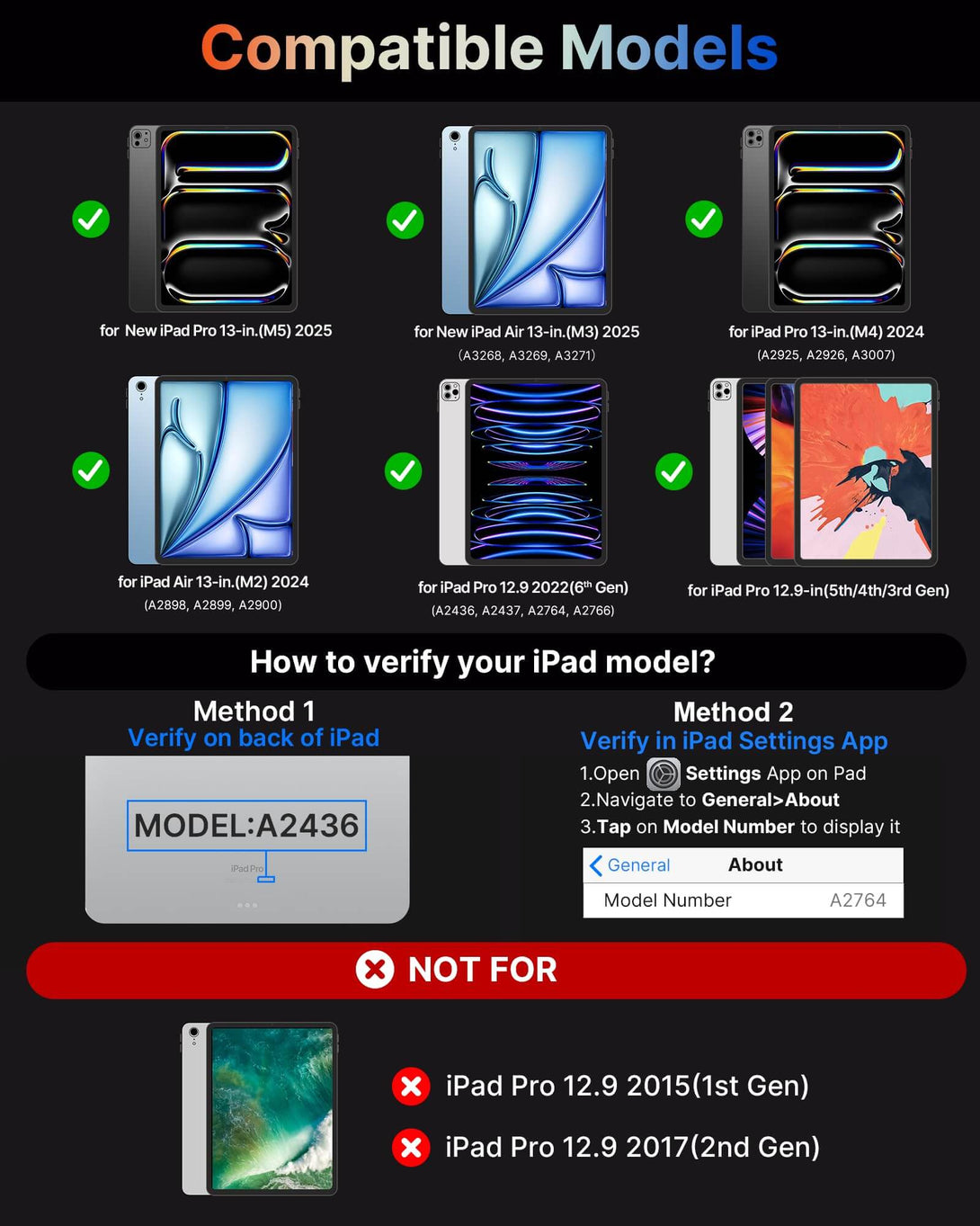

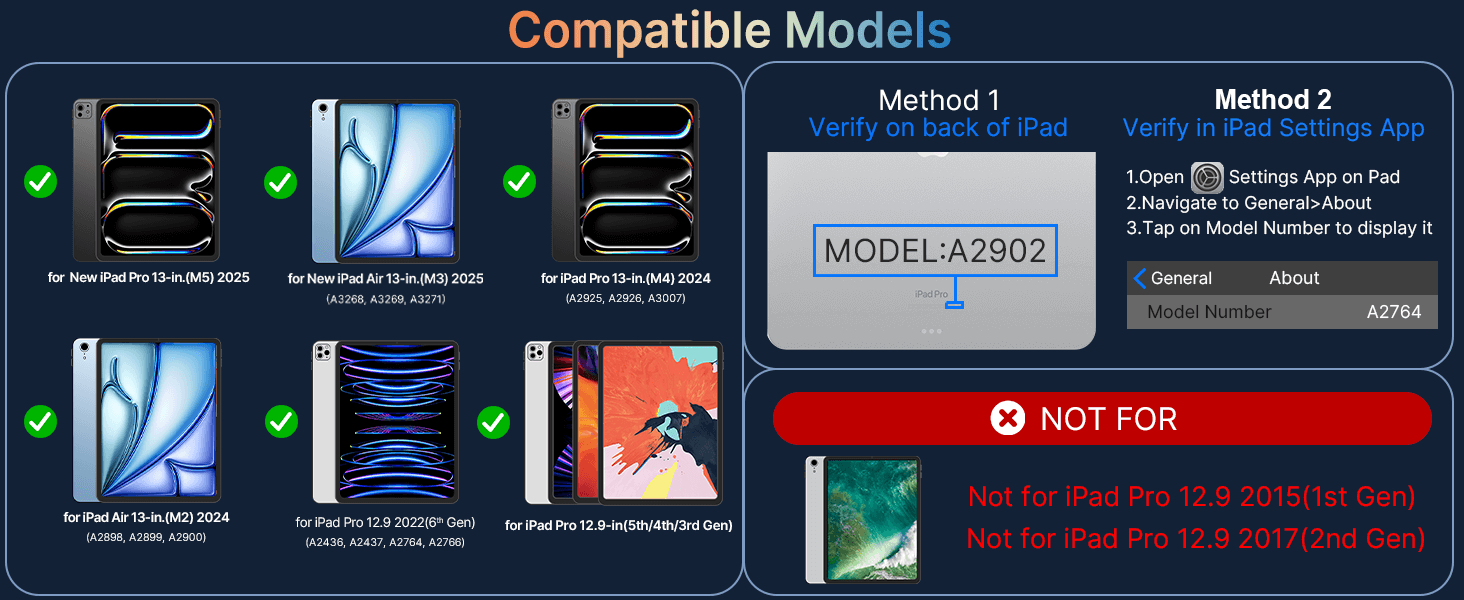

Compatibility: iPad Pro 13-inch(M5/M4, 2025/2024) & iPad Air 13-inch (M3/M2, 2025/2024) & iPad Pro 12.9 (3/4/5/6th Gen).
01. Restart the keyboard.

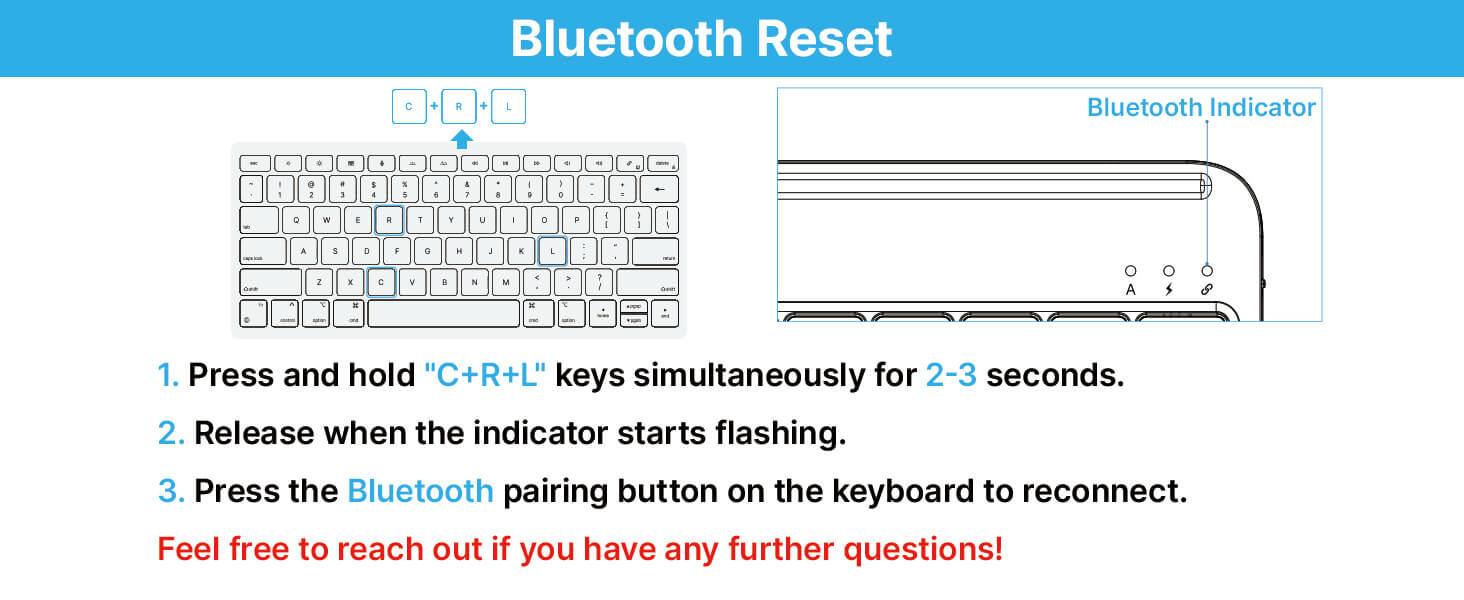

02. Press C+R+L for 2–3 seconds to reset the keyboard to factory settings. Release the keys once the indicator light flashes. Reconnect to iPad.
03. Check and ensure your iPad runs iOS 15.0 or above.
Flexbook Touch 201T Series Product Spec Sheet |
|||
|---|---|---|---|
Structural and Functional Parameters |
Size |
Tablet Size Compatibility |
iPad Pro 13-inch(M5/M4, 2025/2024) & iPad Air 13-inch (M3/M2, 2025/2024) & iPad Pro 12.9 (3/4/5/6th Gen). |
Overall Dimensions |
285*234*22mm(closed) | ||
Case Dimensions |
253.70*195.75*10.40mm | ||
Color Box Dimensions |
314*255*36mm | ||
Weight |
Weight of bare unit |
870g±10g | |
Packaged Weight |
1280g±10g | ||
Material |
Protective Case |
AC2300-PC+ABS | |
Front Shell |
AC2300-PC+ABS | ||
Base Shell |
AC2300-PC+ABS | ||
Maximum Opening Angle |
180° | ||

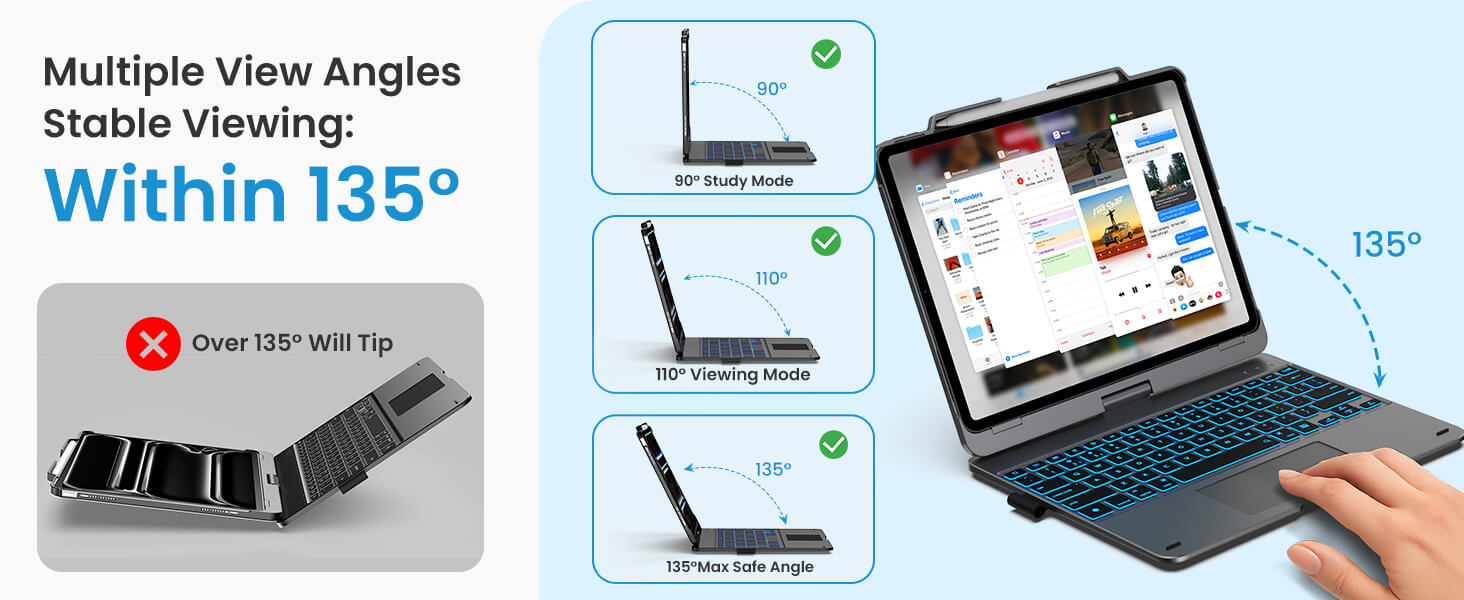

Maximum Non-Reclining Angle |
≥135° | ||
Keyboard Locking Angle |
0°/90°/180° | ||
Main Hinge Life Span |
≥5,000 cycles | ||
Touchpad |
102.60mm × 61.60mm PET sheet, glass-like finish (160±10g pressure resistance, silent switch) | ||
Keycore Life Span |
≥300W | ||
Keycore Waterproof Rating |
IPX6 | ||
Hardware Functional Parameters |
Power Button |
Toggle switch | |

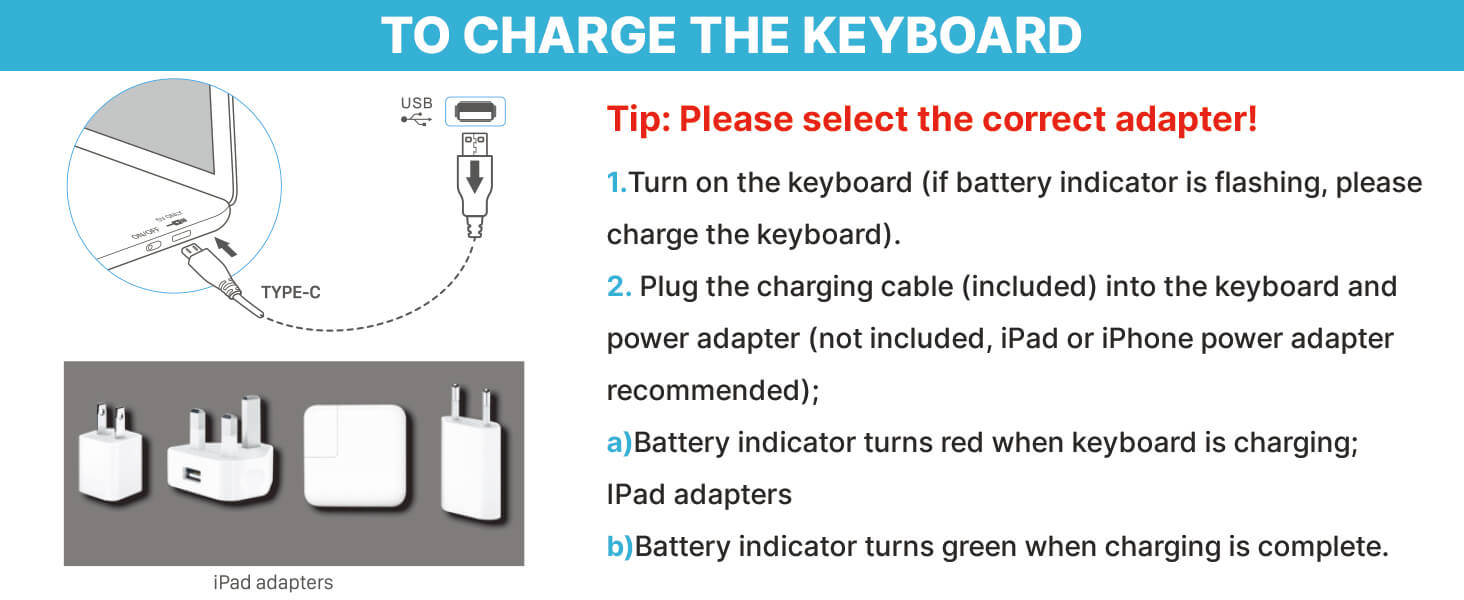

Charging |
Type-C interface | ||
Language |
English | ||
Motherboard Scheme |
Nordic solution, BLE 5.0 | ||
Bluetooth Range |
≥10M | ||
Bluetooth Name |
Typecase Flexbook | ||
Touch Scheme |
Original Scheme 1336U | ||
Backlight Mode |
11 colors static 1 dynamic Dynamic soft breathing (transition sequence: blue-cyan-dark blue-purple-dark red-pink-red-orange-cyan-green-white) |
||
Anti-Static Rating |
Grade A Contact discharge (positive/negative terminals) 4kV, air discharge (positive/negative terminals) 8kV. Test points: key core, rotating shaft, charging port. Withstands 25 electrostatic discharge strikes without malfunction. |
||
Operating Voltage |
3.3-4.2V | ||
Battery Capacity |
660mAh | ||
Charging Time |
≥2.5H | ||
Standby Time |
≥20Day | ||
Backlight Sleep Time |
90s | ||
Keyboard Deep Sleep Time |
10min | ||
Backlight Operating Current (mA) |
<85mA | ||
Charging Current (mA) |
<316mA | ||
Standby Current (mA)
|
≤0.7mA | ||
Sleep Current (mA)
|
≤900UA | ||
Offers infinite viewing angle adjustment with support for seven usage modes. Presentation display, document editing, and mode switching all deliver an unprecedentedly smooth experience.

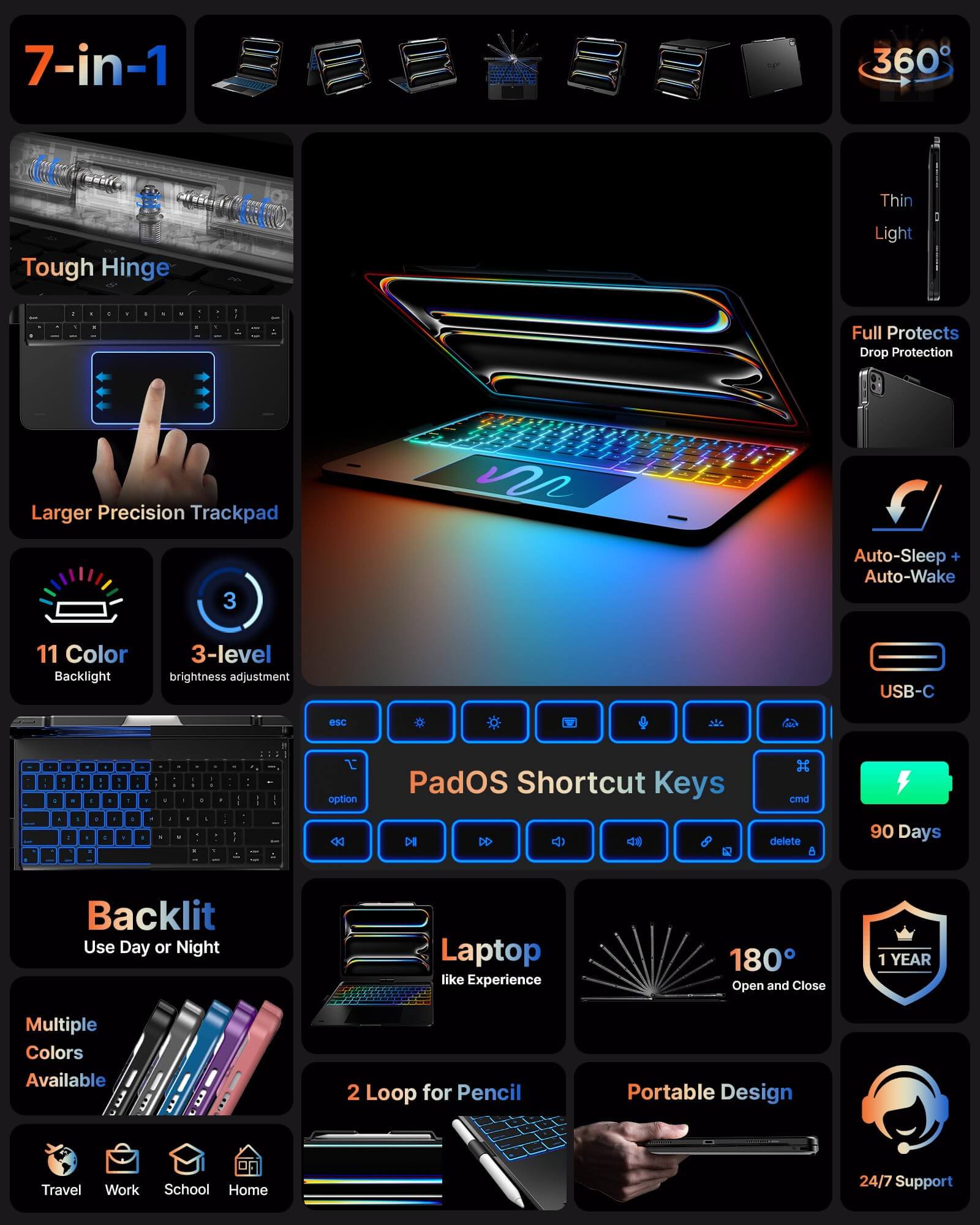

The 11-color RGB backlit keyboard with a full row of iPadOS shortcuts provides a comfortable typing experience, day or night
Equipped with a high-precision touchpad, allowing you to control your device in a whole new way with just your fingertips.
Supports three brightness levels and features a full iPadOS shortcut key function area.
Rugged hard - shell - The ipad pro 11 inch m4 keyboard case designed for protecting your iPad on both front and the back sides, preventing being scratched from accidental dropping and bumps. Auto sleep/wake when you open or close your iPad, conserving your iPad battery life; holder for Apple Pencil so it won't get lost or in the way.
